Specifications

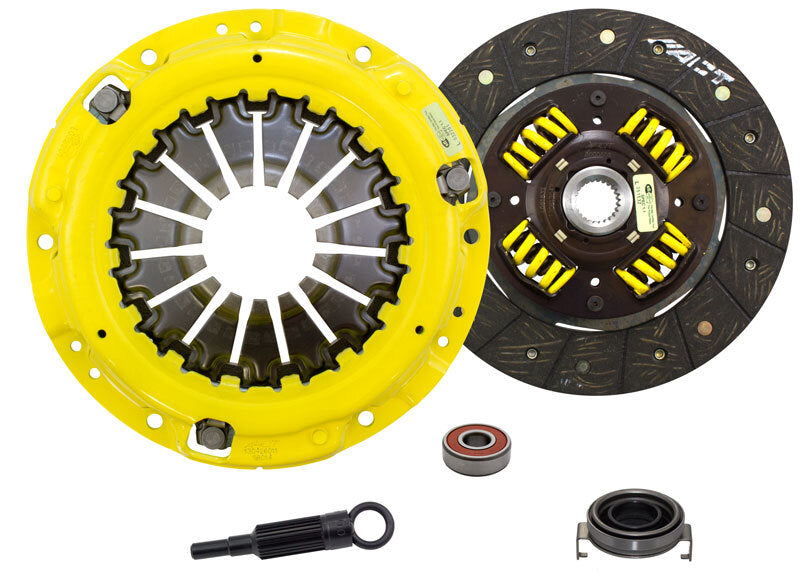

Item Description    ACT Heavy Duty Performance Street Sprung Clutch Kit
Product Weight (lbs.)    14.5
Torque Capacity (ft/lbs.)    420
Torque Capacity Over OE    32%
Disc Material    Organic
Clutch Disc Diameter (Inches)    9
Clutch Disc Diameter (Millimeters)    228
Input Shaft Diameter (inches)    1
Pressure Plate Type    Heavy Duty
Warranty    12 Months (view details)

Description

SB5-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Feel  -  Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle

Life  -  Longer friction life, extended by ACT's exclusive diaphragm design

Quality  -  Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade

Recommended Use  -  Recommended for street and race use

ACT Difference  -  100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Applications

• 2006-2014 Subaru Impreza WRX
• 2015-2018.5 Subaru WRX
• 2006 Subaru Baja Turbo
• 2006 Saab 9-2X Aero
• 2006-2008 Subaru Forester XT
• 2005-2009 Subaru Legacy GT Limited / Spec B(see * below)
• 2005-2009 Subaru Outback XT
• *230mm
• *5 Speed applications only
